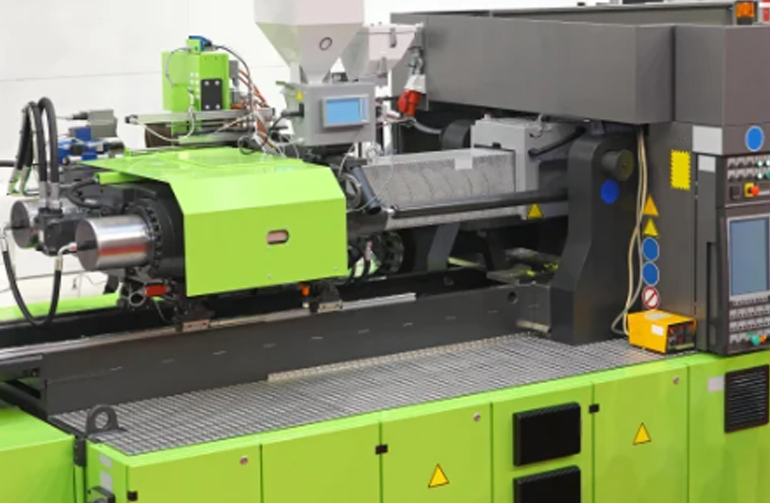

Product Details

Clamping Unit

• Rigidity of clamping system through five point double toggle system
• Less jerks & less vibration of machine thanks, to inbuilt cushion cylinder & rigid base construction.
• Multi stage mould open/close pressure & speed control. (4stage – close & 3stage – open)*
• Multi function hydraulic ejection control.*
• Set mode for mould mounting
• Toggle lubrication system by central lubrication device.
• Pre-tensioned tie bar for reliable endurance.
• Frame with catch tray and guide channels to collect surplus oil keep machine frame clean.
• Safety doors with clear Acrylic windows

Injection Unit

• Twin cylinder balanced injection system.
• Better designed ring plunger for better shot weight accuracy.
• High injection power, high rigidity of platen & fast cycling machine functions very useful for precision & stable Moulding.*
• 5 stage injection with pressure/speed/position control.*
• Plasticizing cold start prevention function.
• Automatic purging function
• Suck back function (before & after plasticization), very useful with hot runner moulds & for low viscous melts
• Inbuilt PID barrel temperature control
• Short circuit proof SSR control circuit for heater bands

Hydraulic

• High quality pump station with branded Electric Motor and Pump
• High quality vane pump with robust construction ensuring long service life & trouble free operation
• Low-noise Pump drive system
• Tube type oil cooler (Highly efficient & easy maintenance)
• Provision of lids to clean oil tank
• Efficient piping by using max. no. of hoses thus achieved zero oil leakage.

Control System

• New generation highly reliable controller.
• Operator Friendly Screens with direct access
• System can be flexibly expanded with modules
• Mould date storage
• Running function display by LED on function keys & status message on MMI.
• Machine cycle timing details in a single screen
• Hourly & monthly production monitoring system with cumulative production counter.
• Control panel temperature display and Interlock for overheat.
• Ethernet interface port
• Membrane keys to operate machine axes and application options.
